Victory in Christ Church
Westville, NJ
VERSATILE AND ADAPTABLE TO MEET YOUR NEEDS.

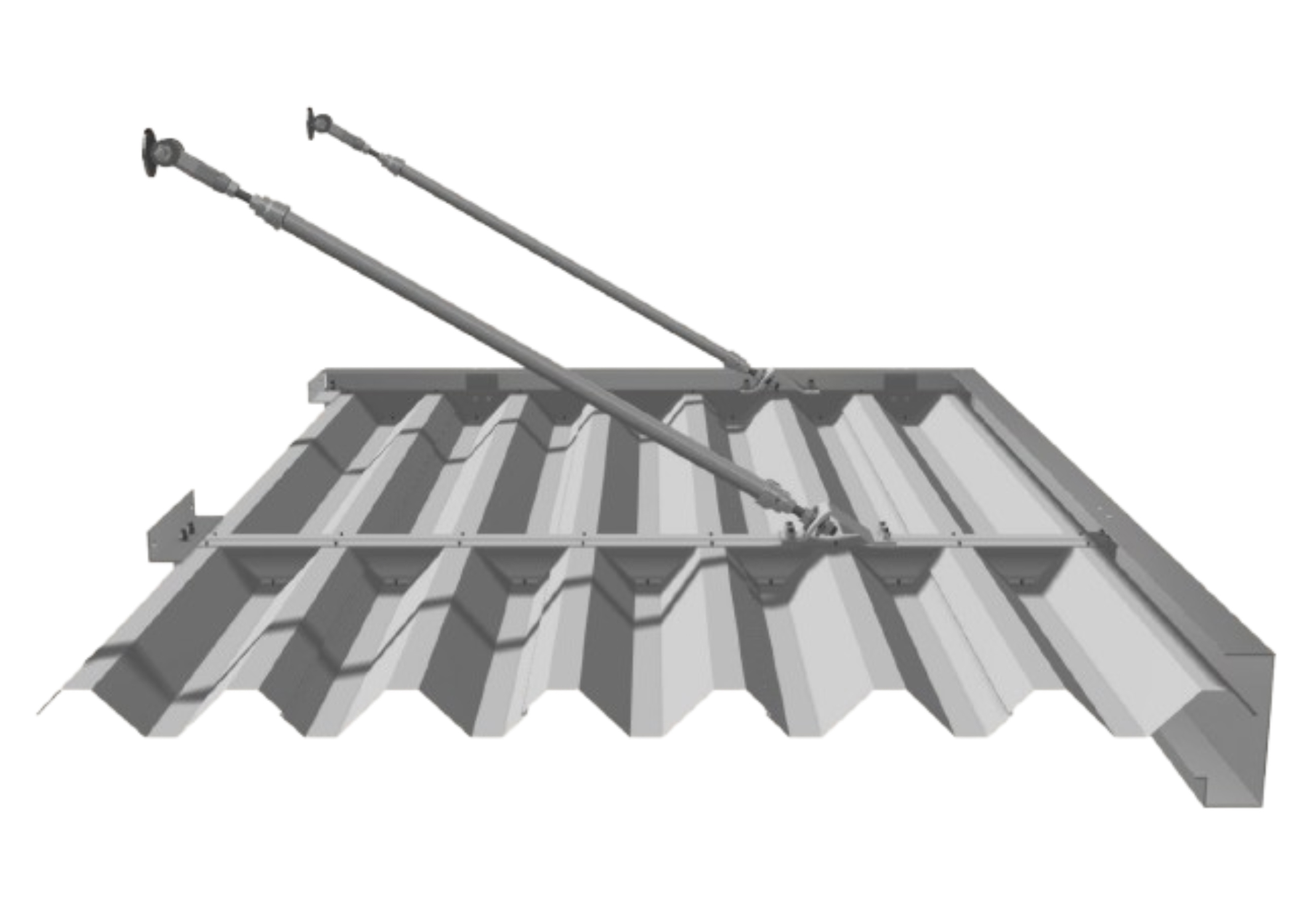

The Lumishade canopy is an economical, highly versatile canopy system designed for a wide variety of applications. The roll-formed decking offers a high-load capacity and is delivered in pre-assembled sections to allow for ease of installation. This functional canopy protects from the elements without sacrificing design options and flexibility. The Lumishade canopy will stand the test of time, while keeping you on budget.
Key Benefits
- .040 Roll-formed decking
- Economical
- High-load capacity
- Modular design
- Rust & maintenance free
- Custom details & colors
- Pre-assembled sections
Applications
- Door & window covers
- Loading docks
- Parking garages
- Storefronts
- Passive solar
- Shopping centers
Technical Data
The following information defines installation details and design considerations for the canopy system.
| Product | Lumishade |
|---|---|
| Material | All Aluminum, T6–6063 |
| Fascia | .125” |
| Decking | .040″ (Roll‑Formed) |
| Deflection Rating | L/180 |
| Maximum Projection | 10' with Hanger Rod Supports |
| Maximum Projection | 10’ with Cantilever Supports |
Project Gallery
Urgent Care Medical
Parkesburg, PA
Triple AAA
Philadelphia, PA
Tile Factory Outlet
Buford, GA
St. Joseph Provena Medical
Joliet, IL
Provena Health Annex
Kankakee, IL
