MINIMALISM MEETS FUNCTION

Mapes Cantilever canopies deliver a clean look to compliment any design or building requirement. They are specially engineered with support brackets that offer a clean streetscape sightline and minimalistic look. Deck profiles can be combined with differing fascias to complement any design emphasis or building requirement. Available in a variety of styles including Super Lumideck, Lumishade and SuperShade, to meet your objectives and your expectations.

Key Benefits

  • Pre-engineered
  • Modular Design
  • Economical
  • Custom Colors
  • Custom Details
  • High Load Capacity
  • Internal Drainage

Applications

  • Retail Branding
  • Shopping Centers
  • Storefronts
  • Parking Garages
  • Passive Solar
  • Loading Docks
  • ADA Access Door
  • Warehouses
  • Office Buildings

Technical Data

The following information defines installation details and design considerations for the canopy system.

Product Cantilever
Material All-extruded Aluminum, T6 – 6063
Fascia .125”
Decking .078” or .040”
Deflection Rating L/180
Maximum Projection 5’ with Cantilever Supports

Industries

  • Retail & Restaurants Retail & Restaurants
  • Educational & Medical Facilities Educational & Medical Facilities
  • Office & Industrial Complexes Office & Industrial Complexes
  • Multi-Family & Hospitality Multi-Family & Hospitality
  • Public & Religious Buildings Public & Religious Buildings
  • Sports & Entertainment Venues Sports & Entertainment Venues

Plan your next project with confidence

Request a Quote

Frequently Asked Questions

What is the maximum projection for a cantilever canopy, and can they handle high-load areas?

The standard maximum projection for a cantilever canopy is 5 feet. Because these systems are pre-engineered for high load capacity, they are well-suited for high-stress environments. Mapes also provides PE Stamped Calculations for all 50 states to ensure the design meets local building codes for both snow and wind loads.

What colors/finishes are available?

Mapes offers standard finishes (such as Clear Anodized, White & Bronze Baked Enamel), as well as a wide range of 2-coat liquid Kynar (70% PVDF) options. Mapes can also provide a custom-matched color for your building’s branding or architectural palette.

What style choices are available for the deck and fascia?

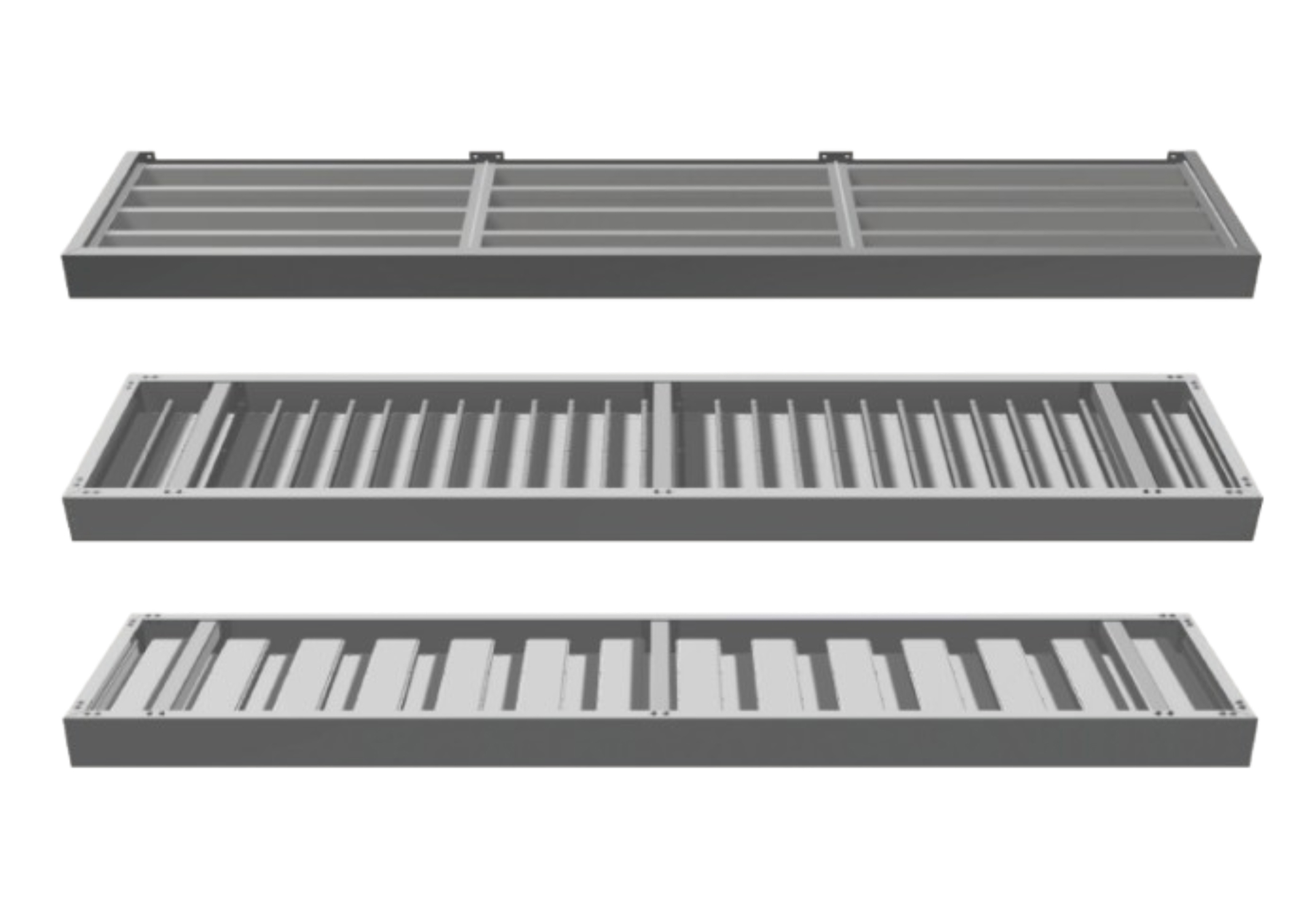

You can choose from three main styles: Super Lumideck (flat soffit or corrugated), Lumishade (.040-inch roll-formed), and SuperShade (louvered). There are also numerous fascia options, including various sizes of J-style, C-channel, smooth face and custom designs.

How do these canopies handle drainage?

The Super Lumideck and Lumishade models feature an internal drainage system. Water is collected in the perimeter fascia gutter and discharged through bottom-mounted scuppers or downspouts. The SuperShade (louvered) model is open and does not require a drainage system.
