ALL-WEATHER CANOPIES. AND WE MEAN ALL-WEATHER.

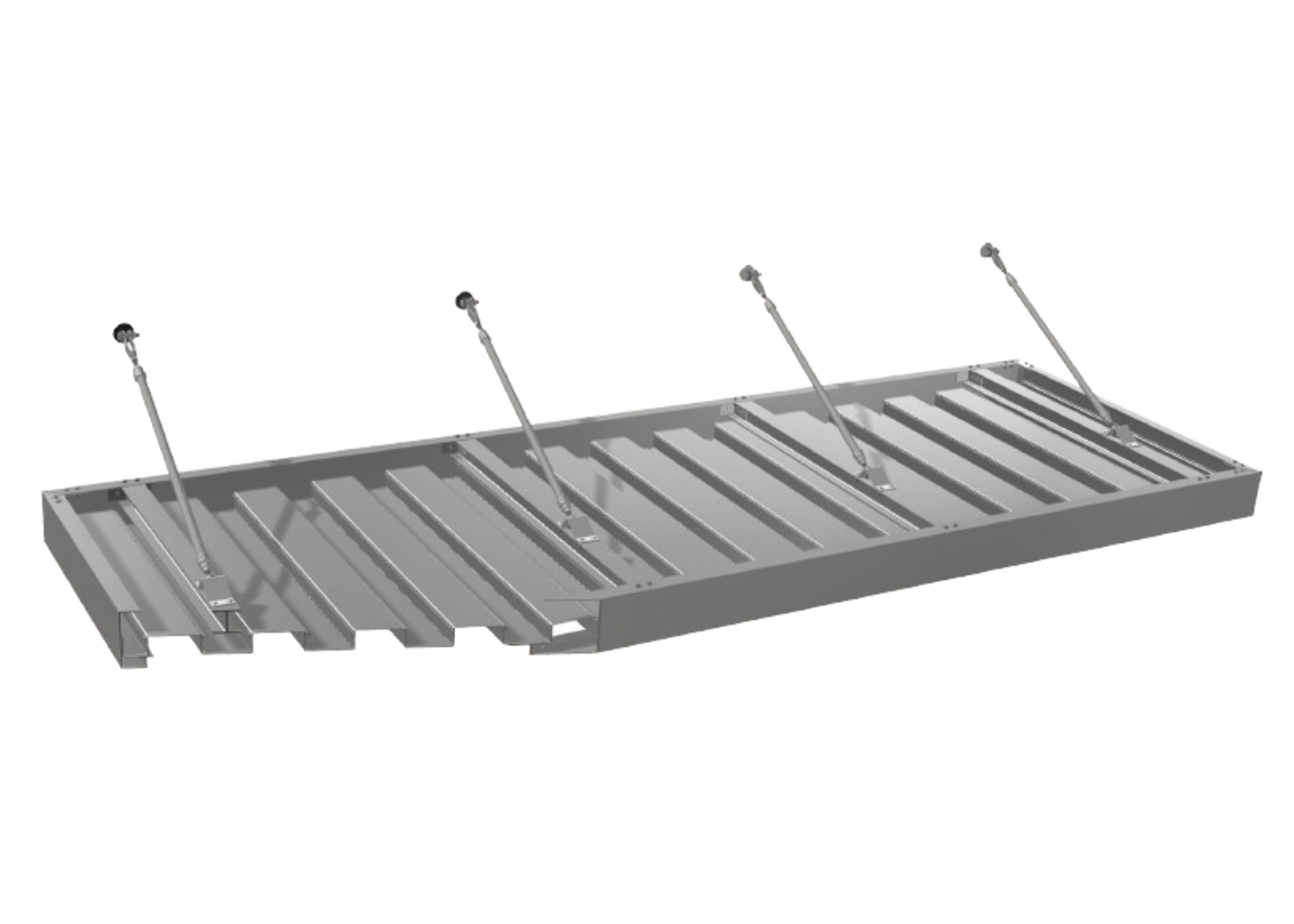

The Super Lumideck canopy is an all-extruded, pre-engineered canopy designed for high-load architectural applications. The square, corrugated
deck provides long-term strength and durability. A variety of different fascia profiles and attachment methods deliver the ultimate in design versatility, while keeping installation simple and straight forward. Compared to the alternatives, Mapes aluminum, non-rusting finish and high-quality extruded materials offer superior longevity, while meeting all local code requirements for snow and wind loads.

Key Benefits

  • 2 ¾” square corrugated decking
  • High-load capacity
  • Pre-engineered
  • All-extruded Aluminum
  • Rust & maintenance free
  • Custom details & colors
  • Pre-assembly options

Applications

  • Retail branding
  • Shopping centers
  • Storefronts
  • Office buildings
  • Door & window covers

Technical Data

Product Super Lumideck
Material All-extruded Aluminum, T6 – 6063
Fascia .125”
Decking .078”
Deflection Rating L/180
Maximum Projection 10' with Hanger Rod Supports
Maximum Projection 5’ with Cantilever Supports

Industries

  • Retail & Restaurants Retail & Restaurants
  • Educational & Medical Facilities Educational & Medical Facilities
  • Office & Industrial Complexes Office & Industrial Complexes
  • Multi-Family & Hospitality Multi-Family & Hospitality
  • Public & Religious Buildings Public & Religious Buildings
  • Sports & Entertainment Venues Sports & Entertainment Venues

Plan your next project with confidence

Request a Quote

Frequently Asked Questions

What makes the Super Lumideck a high-performance choice for architectural applications?

The Super Lumideck is an all-extruded, pre-engineered canopy built for high-load architectural applications where superior longevity is required. It features a 2 ¾” square corrugated deck made of .078″ aluminum and a .125″ fascia, all constructed from high-quality T6-6063 aluminum to meet local code requirements for snow and wind.

What are the projection limits, support options, and wall attachment methods?

This system offers excellent design versatility with a maximum projection of 8-10 feet using hanger rod supports or 5 feet with cantilever supports. For secure installation, Mapes provides specialized hardware for brick/block (using thru-bolts and compression sleeves), CMU, and metal buildings.

How does the Super Lumideck handle heavy environmental stress?

Engineered as an “all-weather” solution, the Super Lumideck is built for high-load capacity with a deflection rating of L/180. This ensures the canopy remains rigid under pressure, and Mapes provides engineered stamped calculations available in all 50 states to verify performance.

Can the Super Lumideck canopy be customized for specific branding or design needs?

The system is highly customizable with various fascia profiles, including J-style, C-Channel, and Smooth Face, and finishes ranging from Clear Anodized (1-year warranty) to premium 2-Coat Kynar (10-year warranty). The square corrugated deck provides long-term strength while remaining rust and maintenance-free.
