Super Lumideck Flat Soffit

All-Extruded Hanger Rod Canopies with Flat Soffit

Request a Quote
Product Brochure
Product Brochure
General Specs
General Specs
Full Design PDF
Full Design PDF
Installation Instructions
Installation Instructions
Download CAD
Download CAD
BIM Basic

ALL-WEATHER CANOPIES. AND WE MEAN ALL-WEATHER.

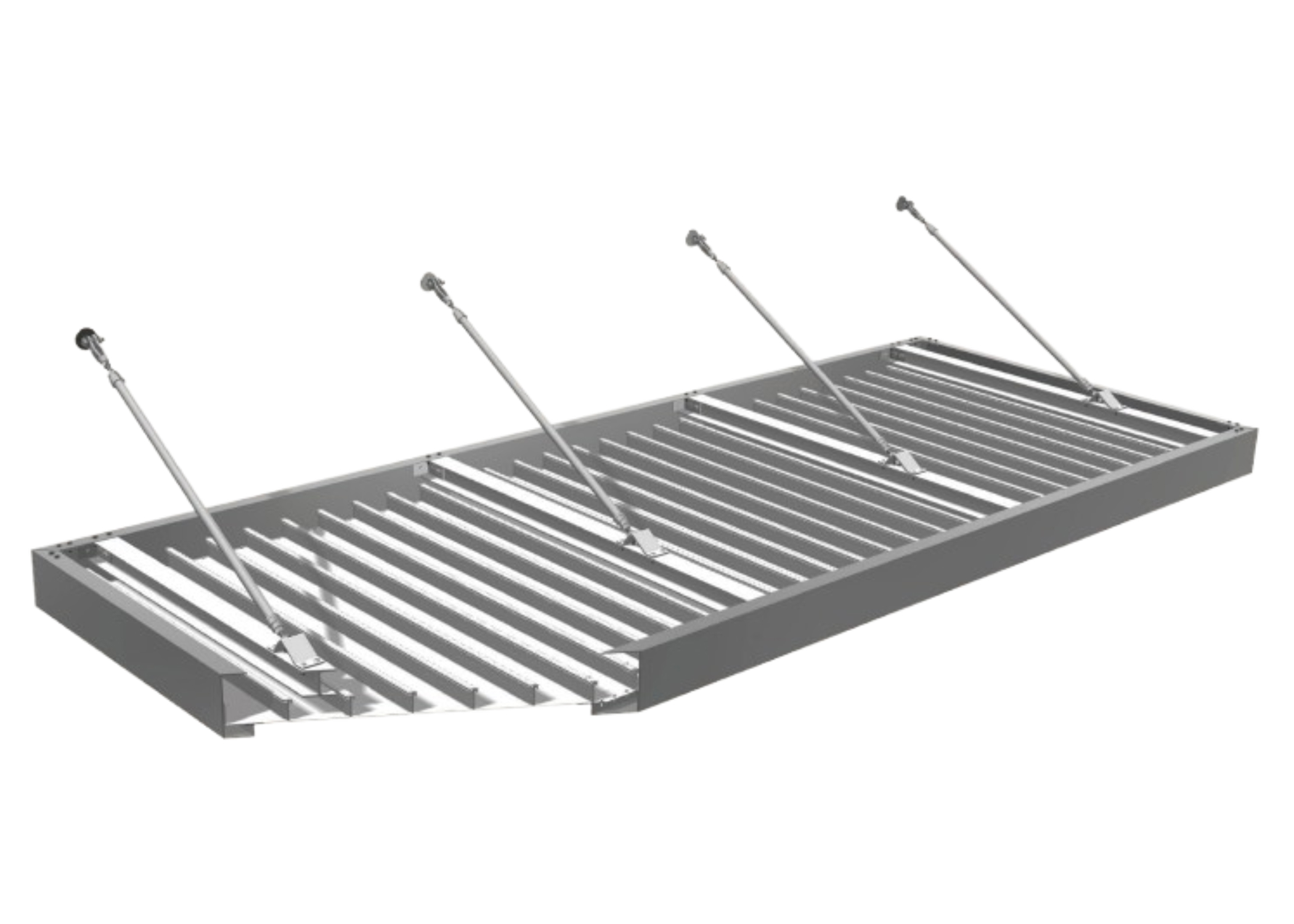

The Super Lumideck Flat Soffit canopy is an all-extruded, pre-engineered canopy designed for high-load architectural applications. The Flat Soffit deck style provides a ceiling aesthetic and achieves a clean, sleek design for any canopy application. The smooth deck can be combined with different fascia profiles to complement any design emphasis or building requirement. Compared to the alternatives, Mapes aluminum, non-rusting finish and high-quality extruded materials provide superior longevity, while meeting all local code requirements for snow and wind loads.

Key Benefits

  • Flat Soffit Decking
  • High-load capacity
  • Pre-engineered
  • All-extruded Aluminum
  • Rust & maintenance free
  • Custom details & colors
  • Pre-assembly options

Applications

  • Retail Branding
  • Shopping Centers
  • Storefronts
  • Office Buildings

Technical Data

The following information defines installation details and design considerations for the canopy system.

Product Super Lumideck Flat Soffit
Material All-extruded Aluminum, T6 – 6063
Fascia .125”
Decking .078”
Deflection Rating L/180
Maximum Projection 8' with Hanger Rod Supports
Maximum Projection 5’ with Cantilever Supports

Industries

  • Retail & Restaurants Retail & Restaurants
  • Educational & Medical Facilities Educational & Medical Facilities
  • Office & Industrial Complexes Office & Industrial Complexes
  • Multi-Family & Hospitality Multi-Family & Hospitality
  • Public & Religious Buildings Public & Religious Buildings
  • Sports & Entertainment Venues Sports & Entertainment Venues

Plan your next project with confidence

Request a Quote

Frequently Asked Questions

What is Super Lumideck Flat Soffit and what materials does it use?

The Super Lumideck Flat Soffit is an all-extruded, pre-engineered canopy crafted from high-strength T6–6063 aluminum. It is specifically designed for a sleek, “ceiling-style” aesthetic, utilizing .078-inch flat soffit decking and a .125-inch fascia. This combination provides superior longevity and a clean, modern look compared to traditional corrugated deck styles.

What are the projection limits, support options and wall attachment methods?

This canopy is engineered for versatility, offering a maximum projection of 6-8 feet with the 6-inch wide material, 10 feet with the 3-inch wide material in a hanger rod-supported system and 5 feet with cantilever supports, depending on local load conditions. For attachment, Mapes provides specialized hardware for brick/block (thru-bolts with compression sleeves), CMU, and metal buildings. Detailed shop drawings are included with every project to ensure a perfect structural fit.

How does Super Lumideck Flat Soffit handle heavy environmental loads?

Designed to be “all-weather,” the system meets all local code requirements for snow and wind loads. It features a deflection rating of L/180 to ensure structural rigidity in high-load architectural applications. Mapes also provides engineered stamped calculations for all 50 states to verify performance for your specific location.

What are Super Lumideck Flat Soffit’s customization and drainage options?

The Super Lumideck Flat Soffit is highly customizable, with various fascia profiles, including J-style, C-Channel, and Smooth Face, and a full palette of architectural finishes. To maintain a clean aesthetic and dry walkway, the system utilizes concealed drainage, directing water from the smooth deck into an integral gutter system. Warranty coverage is tiered by finish: 1 year for standard Baked Enamel/Anodized and 10 years for premium 2-coat Kynar (available in 25 stock colors or custom matches).
