PRODUCTION #: M-5177
ARCHITECT: Richard Bowen & Associates – Cleveland, OH
MATERIAL: All extruded aluminum.
FINISH: Optional white powder coat.
DIMENSIONS: 5 ft projection x 15 ft wide.
FASCIA: Standard 8 inch tall extruded alum. “G” style on 4 sides. (.125 thick) 4 inch tall forward offset fascia extension. (Forward offset is 3⁄4 inch).
DECKING: Standard .078 thick extruded alum flat soffit style set at right angles.
HANGER RODS: Standard 1 inch dia powder coated to match canopy finish.
ESCUTCHEON PLATES: Optional 7 inch square powder coated to match canopy finish. (Other styles and sizes available). Standard is a 3 inch round escutcheon plate powder coated to match.
WALL ATTACHMENT: Through bolts up and down into structural back-up wall behind brick veneer. Through bolts provided by Mapes. Bolt lengths as needed
DRAINAGE: Standard fascia scuppers at front corners (downspouts available as an option).
FINISHES AVAILABLE: Clear anodized. Bronze or baked enamel.
Field Fastener SupplyChicago, IL
Office DepotEvanston, IL

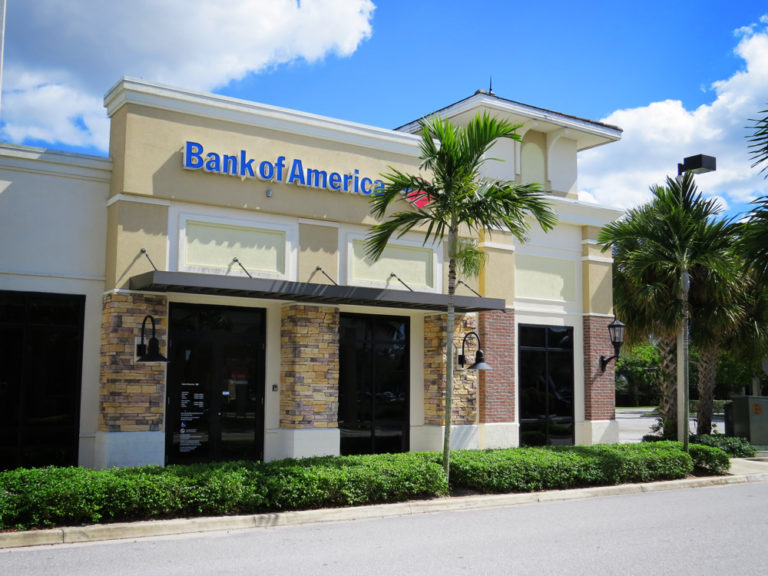

Bank of AmericaBoynton Beach, FL
