PRODUCTION #: M-5856
ARCHITECT: Herschman Architects – Cleveland, OH
MATERIAL: All extruded aluminum – 6063-T6.
FINISH: Mapes standard white baked enamel.
DIMENSIONS: 4 ft projection x 41 ft wide nominal.
TALL FASCIA: Standard 8 inch tall extruded aluminum “g” style on 4 sides (.125 thick).
DECKING: Mapes standard 2 3⁄4 inch style, 6063-t6 extruded aluminum set at right angles to wall. (.078 thick).
HANGER RODS: Standard 1 inch diameter powder coated to match canopy finish color.
ESCUTCHEON PLATES: Standard 3 inch diameter powder coated to match canopy finish.
WALL ATTACHMENT: Through bolts at upper and lower connections into structural steel behind efis exterior finish. Through bolts and steel compression tubes provided by Mapes with lengths as required.
DRAINAGE: Standard front corner scuppers discharging from canopy level. 2 Inch diameter holes are field located and drilled where scuppers are located.
FINISHES AVAILABLE: White or bronze baked enamel.
Highfield Open MRI HandicapPittsburgh, PA
St Leo Life, Education CenterVersailles, KY
Midwest TestingSt.Louis, MO
Prairie Lake Family MedicineLincoln, NE

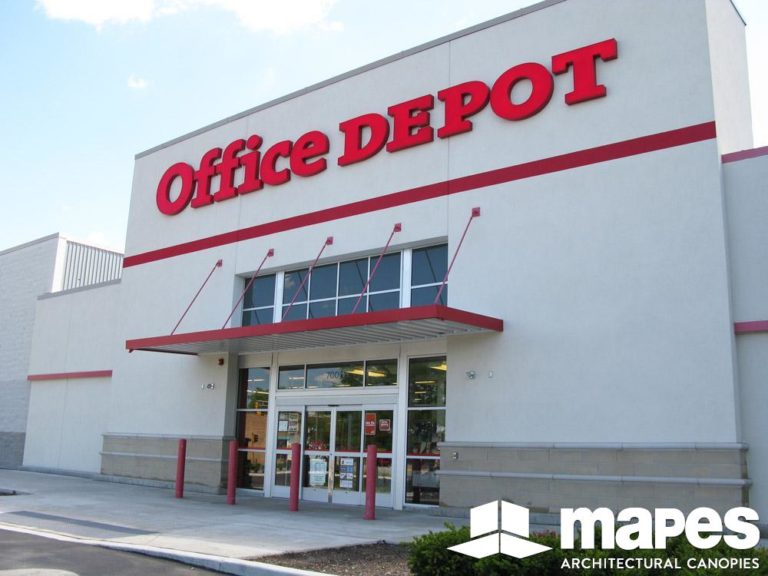

Office DepotEvanston, IL
Clarion University Biology CenterClarion, PA
Trader JoesCary, NC
Buffalo Wild WingsFarmington, MO
Plainfield Fire StationPlainfield, IN

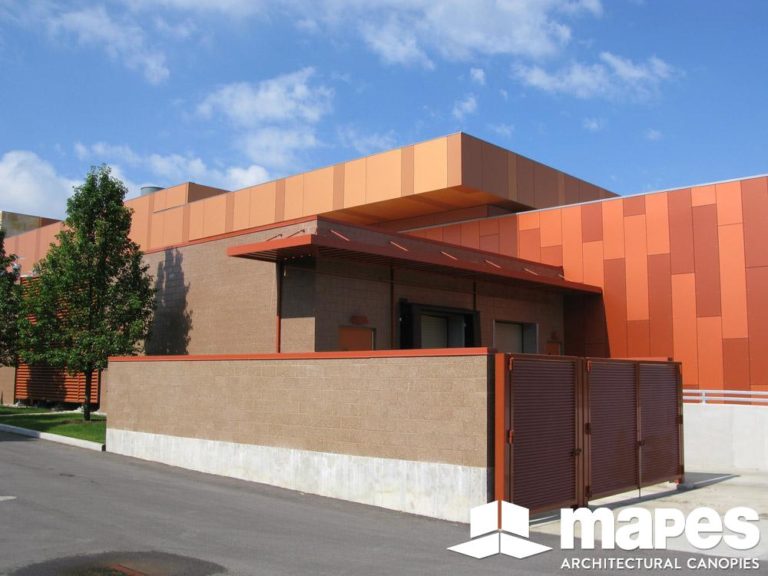

Culinary & Hospitality CenterGlen Ellyn, IL
St. Mary’s Rehabilitation CenterLanghorne, PA
